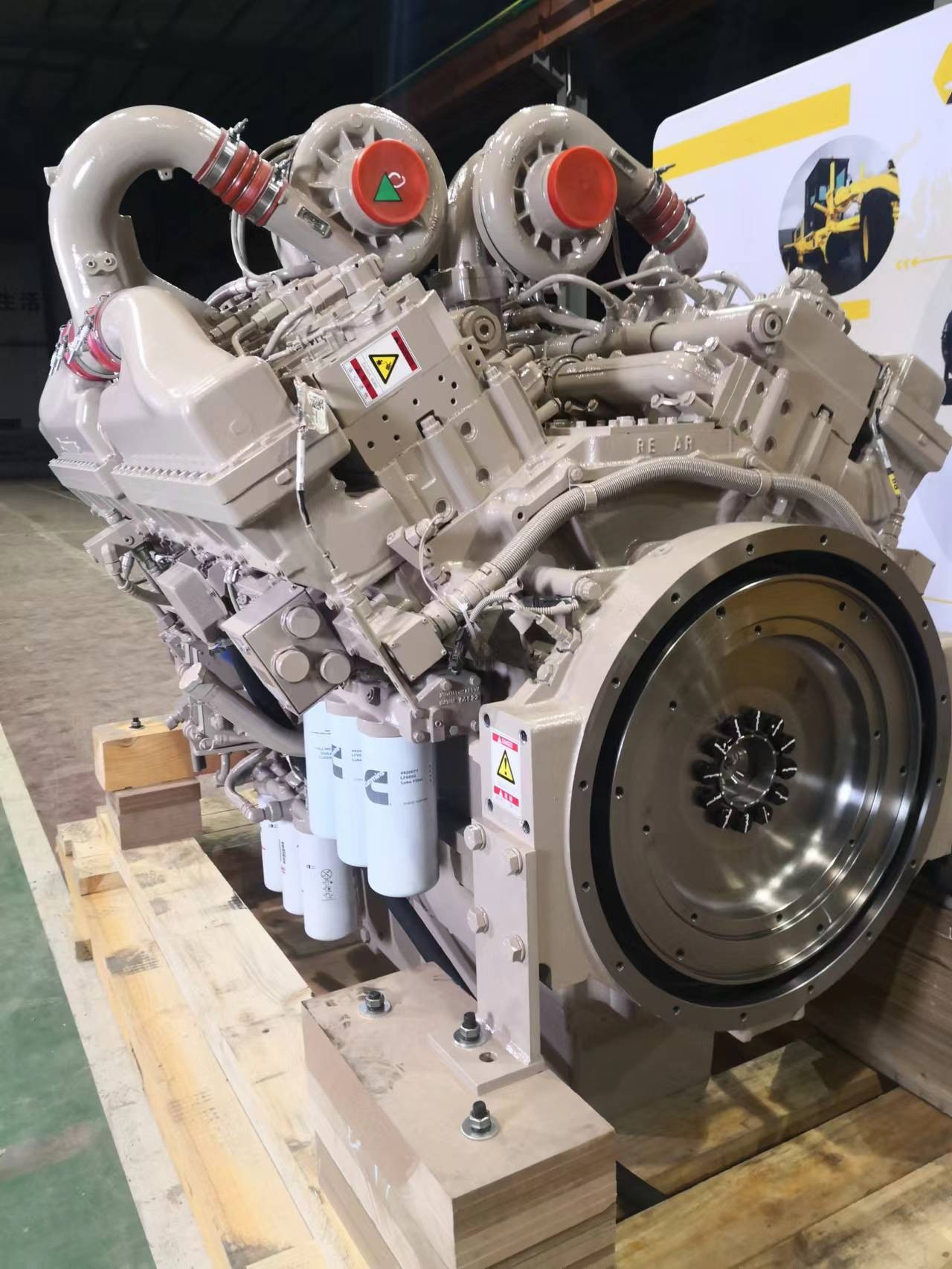

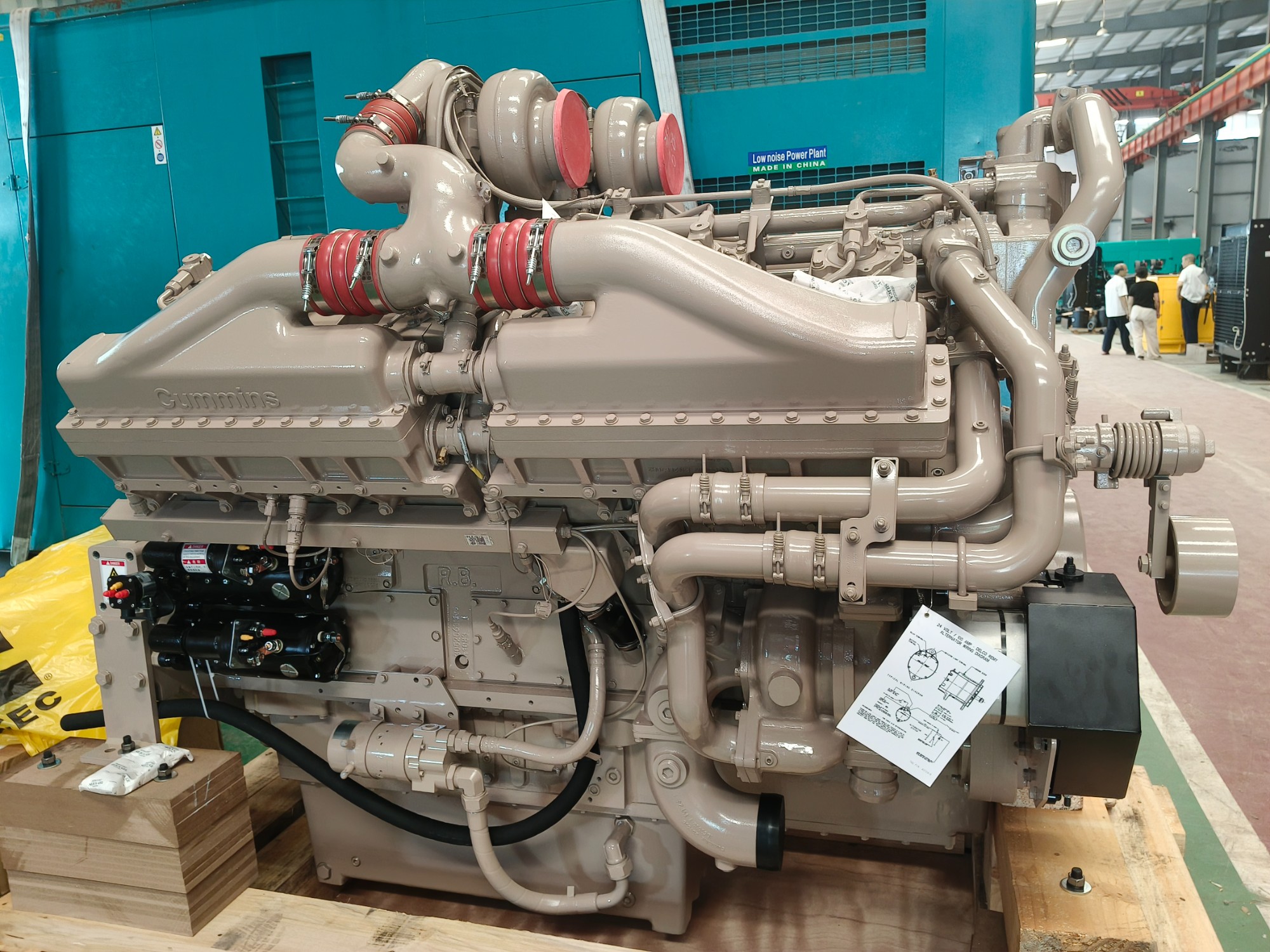

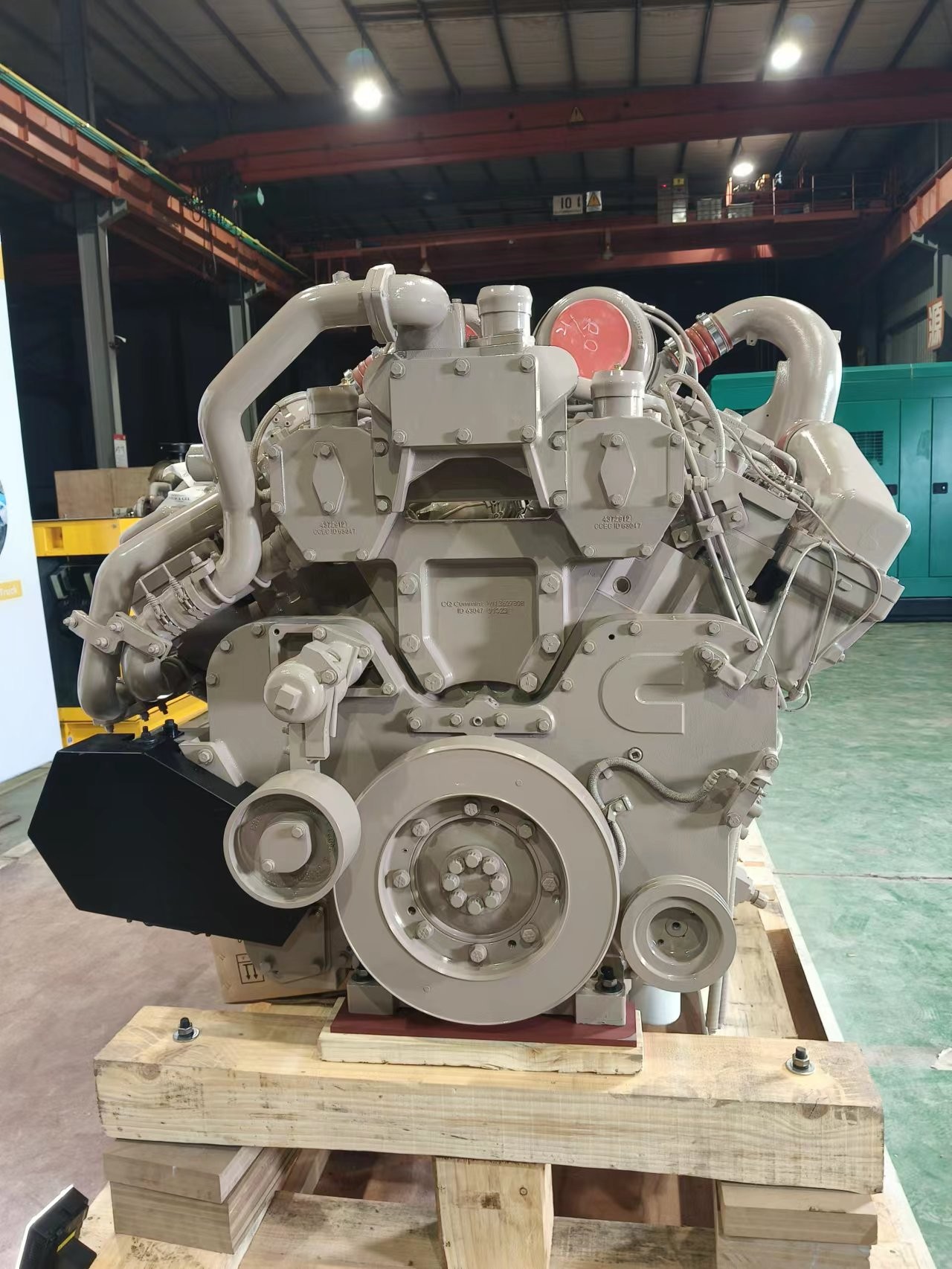

QSK38 CM2150 MCRS

QSK38

INQUIRY

Model	QSKTA38-CE	SDA12V159E-2	QSK38 MCRS
Rated Power	1086BHP@1800RPM	1260BHP@1800RPM	1260BHP@1801RPM
Peak Torque	4867N-m@1350RPM	5496N-m@1400RPM	5496N-m@1401RPM
CPL	CPL3380	CPL3380	CPL3380
Shop Order No.	SO65374	SO64406	SO10094
Configuration	D233040CX03	D233040CX03	D233040CX03
Fuel System	MCRS	MCRS	MCRS
ECM Version	CM2150	CM2150	CM2150
Application	Liebherr R9200	Komatsu PC3000	Hitachi EX1900
Emission Certification	US. EPA Tier 2	US. EPA Tier 2	US. EPA Tier 2
Aspiration	Turbocharged and Aftercooled	Turbocharged and Aftercooled	Turbocharged and Aftercooled
Displacement	37.7L	37.7L	37.7L
No. of Cylinders	12	12	12
Compression Rate	15.0:1	15.0:1	15.0:1
Bore & Stroke	159mm X 159 mm	159mm X 159 mm	159mm X 159 mm
Fuel Consumption	207 g/KW-hr @ 1800 RPM	207 g/KW-hr @ 1800 RPM	207 g/KW-hr @ 1800 RPM
Cooling System Type	2 Pump 2 Loop	2 Pump 2 Loop	2 Pump 2 Loop
Dry Weight	4,510 kg	4,510 kg	4,510 kg
Wet Weight	4,842 kg	4,842 kg	4,842 kg
Dimension	2252mm X 1828mm X 1477mm	2252mm X 1828mm X 1477mm	2252mm X 1828mm X 1477mm
Supply Capacity	>5 Units per Month	>5 Units per Month	>5 Units per Month
